Fencing Tapes, Ropes & Wires Charts

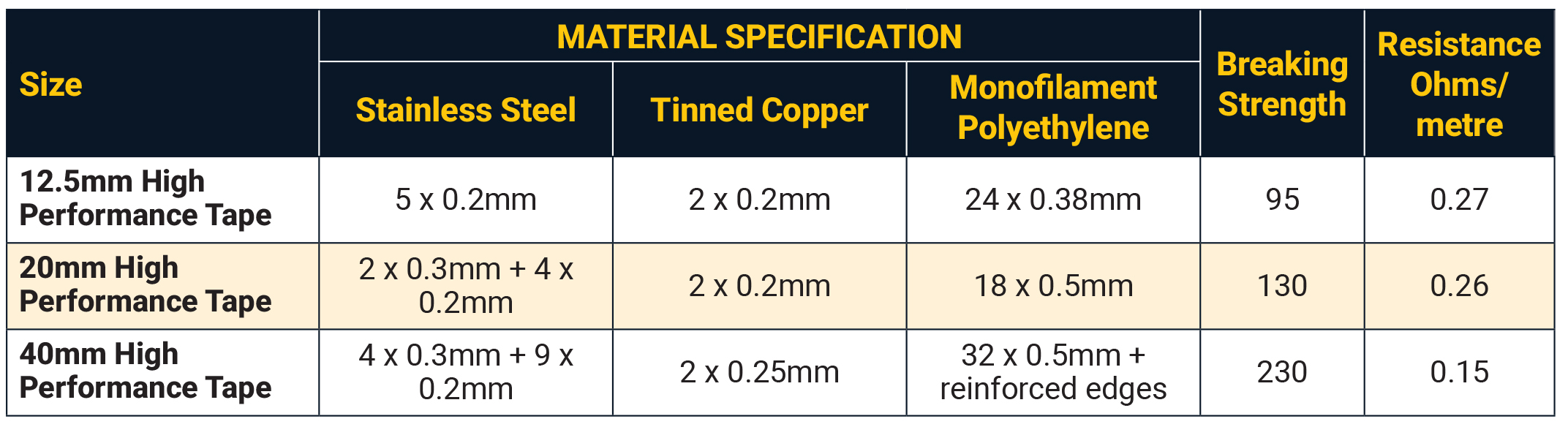

HIGH PERFORMANCE FENCE TAPES

MATERIAL SPECIFICATION
TAPE, ROPE & WIREColourLenghtWidthStainless SteelTinned CopperMonofilament PolyethyleneBreaking StrengthResistance Ohms/ metreBox QtyItem Code
HIGH PERFORMANCE FENCE TAPE
 12.5mm High Performance Tape Green 200m 12.5mm 5 x 0.2mm2 x 0.2mm 24 x 0.38mm 95 0.2718 152533
 20mm High Performance Tape Green 200m 20mm2 x 0.3mm + 4 x 0.2mm 2 x 0.2mm  18 x 0.5mm 130 0.26 10 152543
 40mm High Performance Tape Green 200m 40mm4 x 0.3mm + 9 x 0.2mm 2 x 0.25mm  32 x 0.5mm + reinforced edges 230 0.15 6 152553
 12.5mm High Performance Tape White 200m 12.5mm5 x 0.2mm 2 x 0.2mm24 x 0.38mm 95 0.27 18 152493
 20mm High Performance Tape White 200m 20mm2 x 0.3mm + 4 x 0.2mm 2 x 0.2mm 18 x 0.5mm 130 0.26 10 152503
 40mm High Performance Tape White 200m 40mm4 x 0.3mm + 9 x 0.2mm 2 x 0.25mm 32 x 0.5mm + reinforced edges 230 0.15 6 152513
 40mm High Performance Tape White 500m 40mm4 x 0.3mm + 9 x 0.2mm 2 x 0.25mm 32 x 0.5mm + reinforced edges 230 0.15 1 152523
 40mm High Performance Tape Brown 200m 40mm4 x 0.3mm + 9 x 0.2mm 2 x 0.25mm 32 x 0.5mm + reinforced edges 230 0.15 6 121774

high-performance-fence-tape

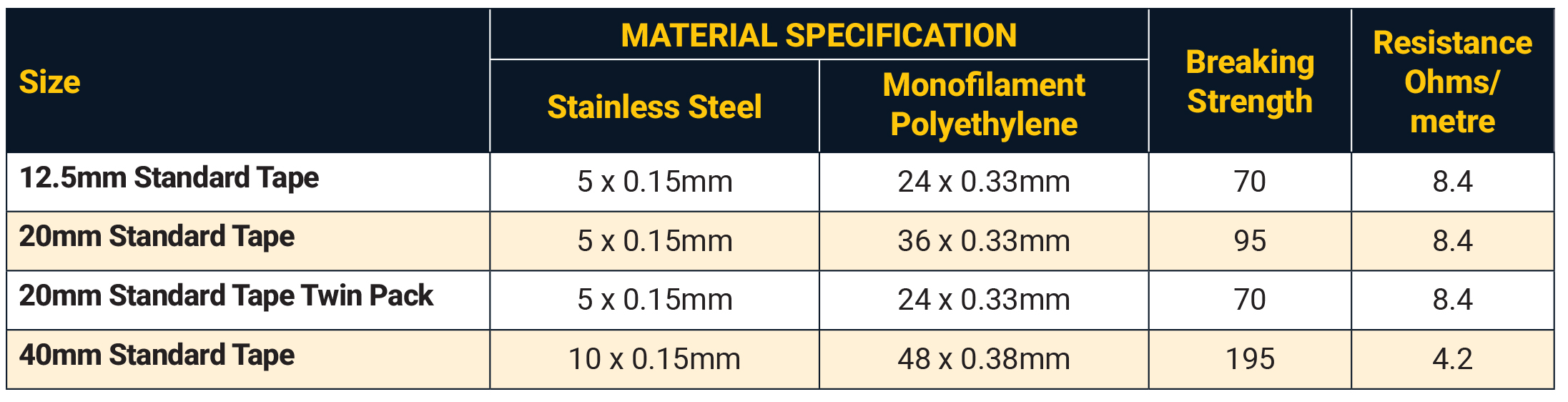

Standard Fence Tapes

MATERIAL SPECIFICATION
 Tape, Rope, & Wire Colour Length Width Stainless Steel Monofilament PolyehyleneBreaking Strength Resistance Ohms/metreBox QtyItem Code
STANDARD FENCE TAPE
 12.5mm Standard Tape Green200m12.5mm5 x 0.15mm24 x 0.33mm708.418152453
20mm Standard Tape Green 200m 20mm 5 x 0.15mm 36 x 0.33mm 95 8.4 10 167430
 40mm Standard Tape Green 200m 40mm 10 x 0.15mm 48 x 0.38mm 195 4.2 6 167440
 12.5mm Standard Tape White 200m 12.5mm 5 x 0.15mm 24 x 0.33mm 70 8.4 18 156160
 12mm Standard Tape (on reel) White 300m 12mm 5 x 0.15mm 24 x 0.33mm 70 8.4 6 152433
 20mm Standard Tape Twin Pack White 200m 20mm 5 x 0.15mm 24 x 0.33mm 70 8.4 5 125694
 20mm Standard Tape White 200m 20mm 5 x 0.15mm 36 x 0.33mm 95 8.4 10 156170
 40mm Standard Tape White 200m 40mm 10 x 0.15mm48 x 0.38mm 1954.2 6 156180
LONG-LIFE FENCE TAPE
 40mm Heavy Duty Perimeter Tape Green 250m 40mm 10 x 0.4mm 32 x 0.5mm + reinforced edges 330 0.631 152463

standard-fence-tape

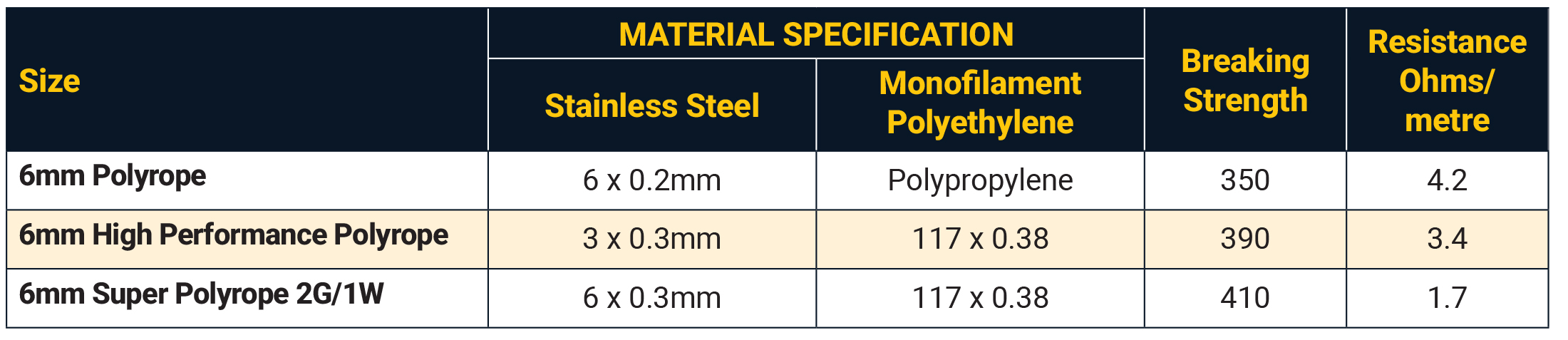

FENCE ROPES

MATERIAL SPECIFICATION
 Tape,Rope & Wire Color Length WidthStainless SteelMonofilament Polyethylene Breaking StrengthResistance Ohms/metre Box Qty Item Code
POLYROPE
 6mm Super Polyrope 2G/1W Green/
White		 200m 117 x
0.38		 6 x 0.3mm 117 x 0.38 410 1.7 6 121624
 6mm Super Polyrope 2G/1W Green/White 400m 117 x 0.38 6 x 0.3mm117 x 0.38 410 1.7 1 121604
 6mm High Performance Polyrope White 200m 117 x 0.38 3 x 0.3mm 117 x 0.38 390 3.4 6 156150
 6mm Polyrope White 200m  6 x 0.2mm Polypropylene 350 4.2 6 151803
ELASTICROPE
 Electrified Elastic Rope Red/White 50m 7mm n/a n/a n/a 4.8 1 119434

fence-ropes

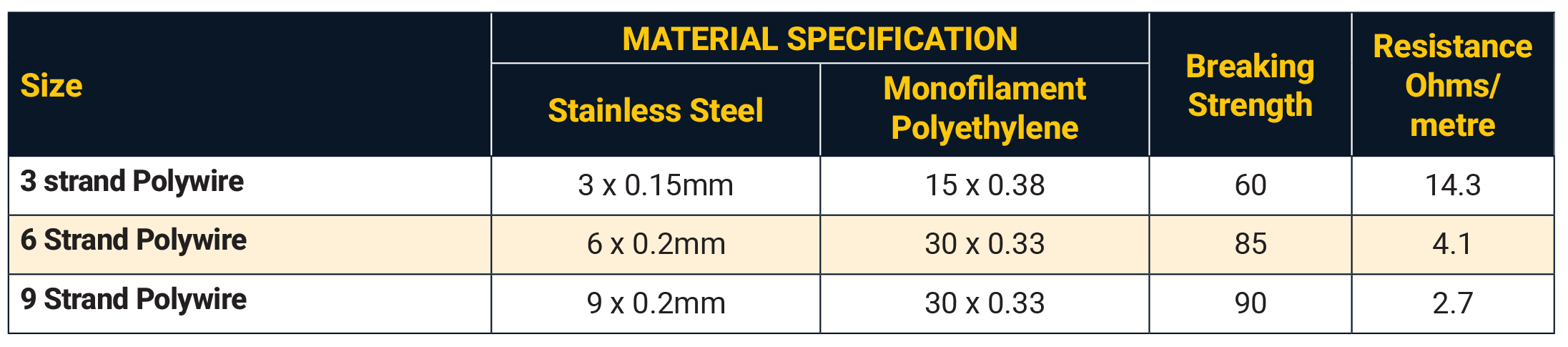

FENCE WIRES

MATERIAL SPECIFICATION
TAPE, ROPE & WIREColourLenghtStainless SteelMonofilament PolyethyleneBreaking StrengthResistance Ohms/ metreBox QtyItem Code
POLYWIRE
 3 strand Polywire White/Green 250m 3 x 0.15mm 0.15mm 15 x 0.3860 14.320156130
 3 strand Polywire White/Green 500m 3 x 0.15mm 0.15mm 15 x 0.38 60 14.312156390
 6 strand Polywire White 250m 6 x 0.2mm 30 x 0.33 85 4.116156820
 6 strand Polywire White 500m 6 x 0.2mm 30 x 0.33 85 4.110156420
 9 strand Polywire Red/Yellow 250m 9 x 0.2mm 30 x 0.33 90 2.716179310
 9 strand Polywire Red/Yellow 500m 9 x 0.2mm 30 x 0.33 90 2.710179320
WIRE
 Galvanised Wire Grey 200m     177930
 Galvanised Wire Grey 400m     177940
fence-wires
